Electric
Precipitator

Air Pollution Control


Poly-Stage Precipitator

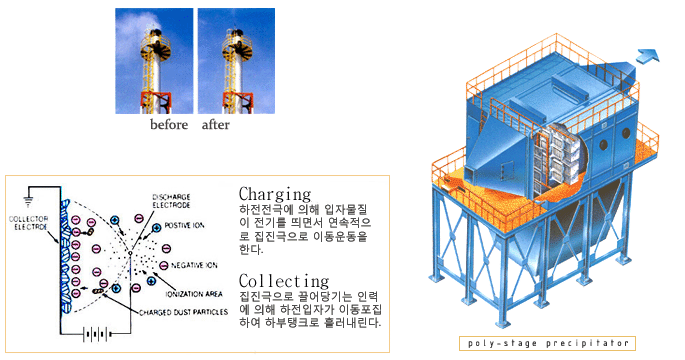

The ionizer charging electrode and plate-shaped dust collecting electrode, which are made of
tungsten wire or needle, are separated into a structure that efficiently removes smoke, fine dust,
and oil mist in the air through the process of passing through the charging and dust collecting
electrodes by corona discharge and electrostatic force.

By adopting cutting-edge technology and materials, and applying purely domestic components,
it is designed and constructed to be suitable for various industrial sites, thus expanding its scope
of application.

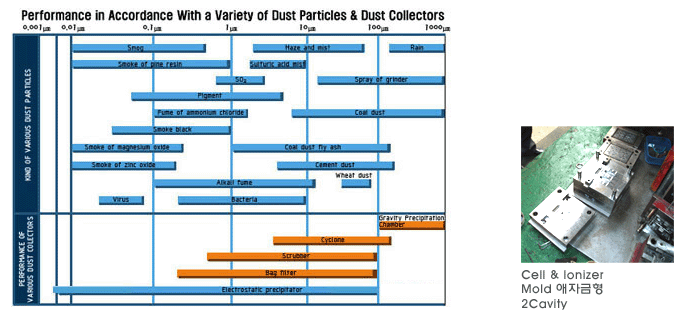

Efficiency

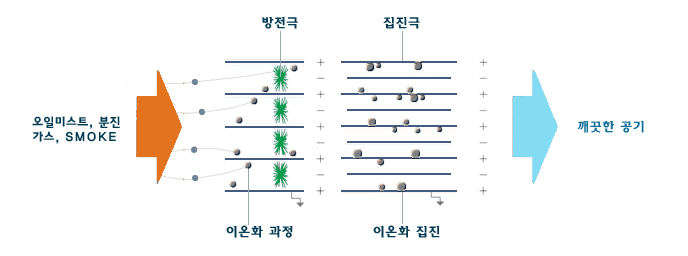

Air purification process

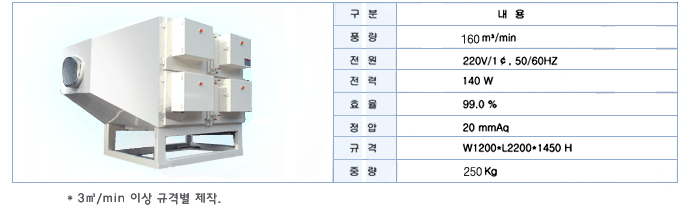

Performance

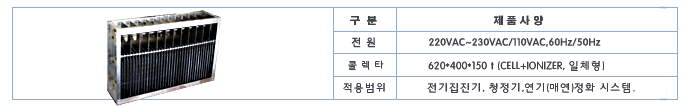

Composition

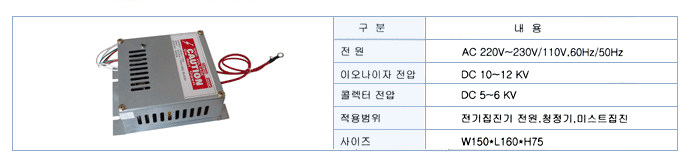

DC Power supply



low-capacity module





Characteristic

① Simultaneously removes smoke and mist.
② High-efficiency product with precision design.

③ Raw material recovery possible.
④ Purifies both supply and exhaust air.
⑤ Wide treatment range (0.01㎛ to 40㎛ or more).

⑥ Overcurrent control and protection function.
⑦ Compact design.


Application

- Welding Smoke
- Chemical Mist
- Cafeteria

- Food
- Lead Smoke
- DOP Mist

- Metals
- Ducted Air Conditioning Room
- Tunnel Dust Collector

- Food Smoke
- Smoking Room
- Research Laborator
