Electric
precipitator

Air Pollution Control



Cyclone Electric Precipitator


This is a high-efficiency centrifugal technology that sprays fog droplets into the polluted gas
inlet to increase the charging effect of the positive (+) and negative (-) high-voltage ion charging
section and the dust collecting section, smooth settling of sludge, and dust collection efficiency
even at high flow rates, processing fine particulate matter in the micrometer range or smaller.

Centrifugal force technology and ion spray dust collection technology are combined to cause
SiO₂ and fine dust larger than 10㎛ to settle by gravity through centrifugal force, and the treated
air is discharged.

This is a new technology that can reduce fine dust of 10㎛ or less in size by electrostatic attraction
and ion coagulation, down to ultrafine dust (PM2.5) and, depending on the system configuration,
even ultrafine dust (PM1.0).






구 성

Characteristic

1. Ion spray electrostatic precipitator capable of reducing ultra-fine particles (patented technology)
2. Applicable to facilities requiring high efficiency as a high-concentration dust pretreatment facility
3. Continuous operation and stable operation are possible even in high temperature and high humidity environments.
4. Compared to dry electrostatic precipitators, the installation area is reduced and the design structure is compact.
5. Stable against combustible dust particles due to wet operation

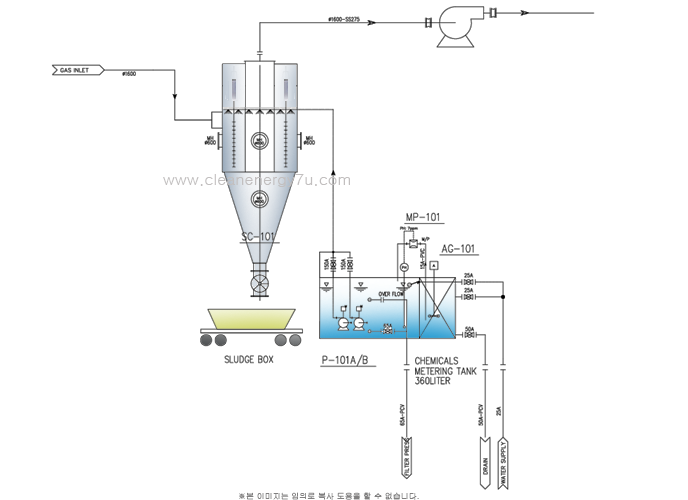

System

-Microdroplet spray device
-Discharge electrode
-HFHV Rectifier Transformer
-Wet spray
-Control panel
-Rotary valve



Installation area

-Compared to dry electrostatic precipitators of the same capacity, the area can be significantly reduced.

Applications

- Smelting
- Steel processing
- Power plant

- Pharmaceuticals
- Petrochemicals
- Textile

- Boiler
- Semiconductor
- LCD

- Incinerator
- Other industrial sites
